MyParticle Class Reference

#include <MyParticle.h>

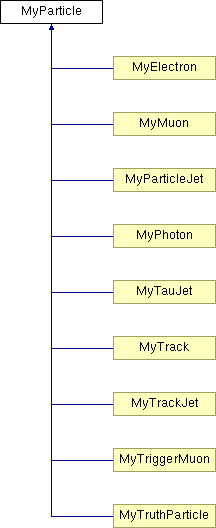

Inheritance diagram for MyParticle:

List of all members.

Public Member Functions
	MyParticle (void)
	Default constructor, set all values to zero.
	MyParticle (const TLorentzVector tlv, Int_t matchingflag, double charge, int index, std::string type, int vertex_index=-1)
	concrete constructor
virtual	~MyParticle (void)
	destructor
TLorentzVector	tlv (void) const
Int_t	matchingflag (void) const
double	charge (void) const
	get the electric charge of the particle
std::string	type (void) const
int	index (void) const
int	pdgId (void) const
	get the PDG-ID
int	vertexIndex (void) const
void	set_tlv (const TLorentzVector &p)
void	set_matchingflag (const Int_t &flag)
void	setVertexIndex (const int &vertex_index)
	set vertex index
void	Print (std::string option="")
virtual void	PrintParticle (std::string option)
	print properties for the specific particle type
Protected Member Functions
void	init (const TLorentzVector tlv, Int_t matchingflag, double charge, int index, std::string type, int vertex_index)
Protected Attributes
TLorentzVector	m_tlv
Int_t	m_matchingflag
double	m_charge
int	m_index
std::string	m_type
int	m_pdgId
int	m_vertex_index

---

Detailed Description

This class is the base class which all particles should be derived from

Date:

21.11.2006

Author:

Steffen.Kaiser

Definition at line 30 of file MyParticle.h.

---

Member Function Documentation

TLorentzVector MyParticle::tlv

(

void

)

const [inline]

get the fourmomentum of the particle

Definition at line 38 of file MyParticle.ixx.

Int_t MyParticle::matchingflag

(

void

)

const [inline]

get the matching flag of the particle = 0 if the particle hasn't be matched = 1 if the particle has already been matched to a another one

Definition at line 63 of file MyParticle.ixx.

std::string MyParticle::type

(

void

)

const [inline]

get the string that holds the type of particle: "electron", "muon", "truth_particle", "gamma", "particle_jet", "tau_jet", "truth_jet", "truth_tau_jet", "track_jet"

Definition at line 87 of file MyParticle.ixx.

int MyParticle::index

(

void

)

const [inline]

get the index of the particle in the original vector

Definition at line 99 of file MyParticle.ixx.

int MyParticle::vertexIndex

(

void

)

const [inline]

get the vertex index (-1 means no vertex association)

Definition at line 123 of file MyParticle.ixx.

void MyParticle::set_tlv

(

const TLorentzVector &

p

)

[inline]

set the fourmomentum of the particle to p

Definition at line 50 of file MyParticle.ixx.

void MyParticle::set_matchingflag

(

const Int_t &

flag

)

[inline]

set the matching flag of the particle to flag

Definition at line 147 of file MyParticle.ixx.

void MyParticle::Print

(

std::string

option = ""

)

[inline]

print properties of particle, this method calls the PrintParticle method of each particle type, if option is set to "v" all properties are printed

Definition at line 160 of file MyParticle.ixx.

---

The documentation for this class was generated from the following files:

• NtupleReader/NtupleReader/MyParticle.h
• NtupleReader/NtupleReader/MyParticle.ixx

---
